BY682 GNSS Receiver

High Precision Positioning And Orientation

It embeds our new generation of RTK algorithm framework with more intelligent built-in algorithms, and produces more efficient RTK solutions. It supports three vector RTK solution to further optimize the stability of positioning and orientation under dynamic conditions.

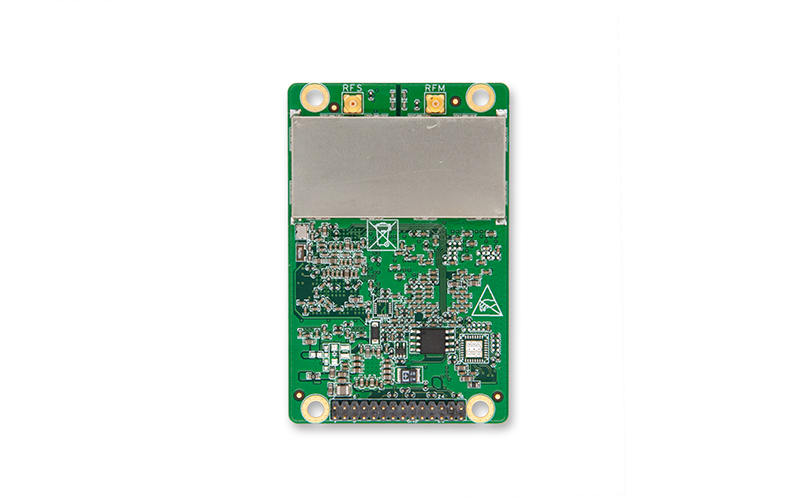

BY682 High Precision GNSS Boards

Embedded with our new generation of RTK algorithm framework, BY682 can quickly calculate the accurate relative position of antennas and the direction of the line connecting the phase center of two antennas, which is expressed as angular distance (azimuth) from true north. Meanwhile, real-time carrier phase differential positioning (RTK) provides centimeter-level high-precision location information, which can be implemented by receiving differential data from reference stations.

Better Dynamic Performance Against Signal Blockage

Watch the video
Features

Features

01 - Integrate single point positioning, RTK, orientation, timing and velocity measurement.

02 - Support three vector RTK algorithm.

03 - Can quickly switch to reference station or rover station through serial communication.

04 - Static post-processing algorithm (Optional).

05 - Output of dual-antenna raw observations (Optional).

Advantages

Advantages

01 - Produce more efficient RTK solutions (driven by more intelligent built-in algorithms).

02 - Support three vector RTK solution to further optimize the stability of dynamic orientation.

03 - RTK solution update rate up to 50 Hz, and RTK + orientation solution update rate up to 20 Hz.

Performance
Types Receiver Board
Physical Properties Dimensions
weight
Power Consumption (Single-Antenna)
Power Consumption (Dual-Antenna)
71mm×46mm×11mm
32g
1.9W
2.4W
Signal Frequency BDS
GPS
QZSS
GLONASS
Galileo
B1I、B2I、B1c、B2a
L1C/A、L2C、L2P
L1C/A、L2C
G1、G2
E1、E5b
External Interface UART
1pps
EVENT
SPI
LAN
CAN
ANT1+ANT2+DIFF
×3
×1
×1
×1
×1
×1
×1
Function Single Point Positioning
Dual-Antenna Orientation
RTK
Three Vector RTK
Reference Station Mode
Rover Station Mode
On-Board IMU
Static Post-Processing
Output of Dual-Antenna Raw Observations
Ntrip
Support
Support
Support
Support
Support
Support
Optional
Optional
Optional
Support







Name Parameter

Board Chassis

With 4Pin extension cable

Radiator

Board radiator

Thermal Conductive Silicone Pad

20MM*20MM*3MM

Power Adapter

220V to 12V/5A - 5.5MM*2.1MM interface

Reference Station Radio-1

A 25W transmitter, a radio antenna (L) QC450A, a suction cup base, and a serial crossover cable

Rover Station Radio-1

A 1.5W transceiver, a radio antenna (M) QC400SI, and a serial crossover cable

Reference Station Radio-2

A 5W transmitter, 1 radio antenna (L), and 1 serial crossover cable

Rover Station Radio-2

1 rover receiver, 1 radio antenna (M), and 1 serial crossover cable

GNSS Geodetic Antenna

Multi-satellite Multi-frequency

Suction Cup Bracket

small size, strong suction

RF Cable

TNC-J to TNC-J-10M, Straight

RF Cable

TNC-J to TNC-J-5M, Straight

RF Adapter

TNC-K to MMCX-JW-25CM, Elbow

RF Adapter

TNC-K to MMCX-JW-15CM, Elbow

RF Adapter

TNC-K to MMCX-J-13CM, Straight

Application Range

Application Range

Our boards can be widely used in surveying, mapping, driverless application, UAV, driver license testing, digital construction, precision agriculture, deformation monitoring, industrial control and many other fields.
